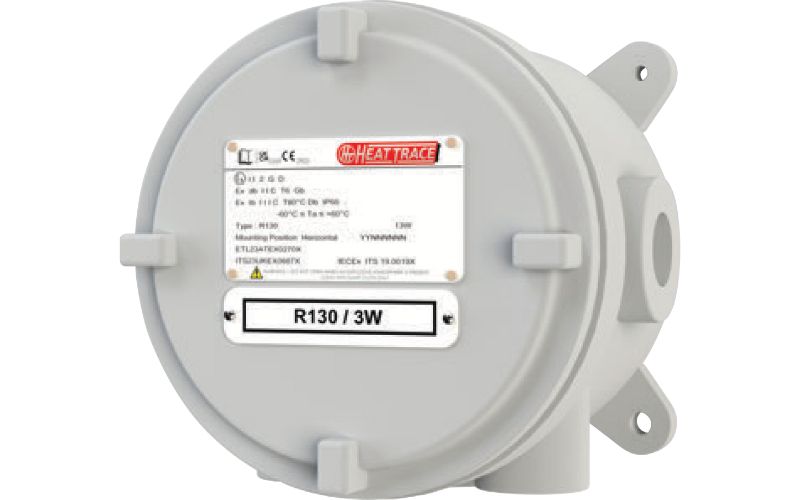

3 Way Heat Tracing Power Junction Box R130/3W/6
This junction box is designed to accept one power cable and connect
three heater cables.
The junction box is provided in size R130 (130mm Dia)
The enclosure is made of high grade cast aluminium and painted with RAL 7035 paint.
The equipment is tested and approved for hazardous area to following
standards and ATEX Directive 2014/34/EU:
IEC 60079-0:2017 and EN IEC 60079-0:2018, IEC 60079-1:2014 and EN
60079-1:2014, and EN 60079-31:2014, IEC 60529:2013 and EN
60529:1992/A2:2013
Example of Applications
- safe areas
- Zone 1 or 2 hazardous areas
Benefits
- Available for safe and hazardous areas
- Suitable for Gas Group IIA, IIB and IIC
- Ingress Protection IP66
- Full range of accesories and termination kits available
