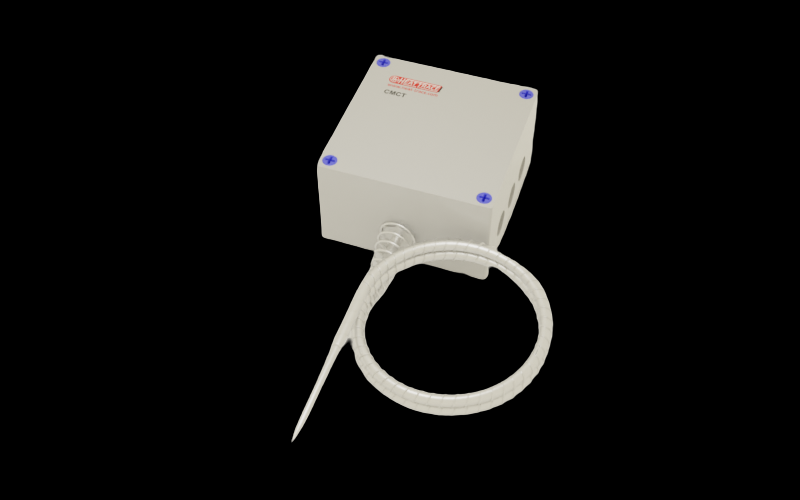

Commercial Junction Box with Thermostat without Light Indication with Clip On Terminals (CMCT)

Heat trace provides commercial range of ambient sensing thermostats that are suitable for Non-Hazardous locations. These are manufactured from Polycarbonate and can be installed even under harsh ambient conditions.

These boxes may be used for direct online termination for power cable and heat tracing cable. Also, a local control through inbuilt thermostat saves lot of control cable and also improves response time. Up to three heat tracing cables and a single power cable can be terminated directly to this commercial thermostat with maximum load of 20Amps.

Features

  • Compact size
  • High Accuracy
  • Single power input
  • Up to 3Nos. ETH connections
  • High ambient temperature range
  • High temperature maintenance range


  • Manual knob setting
  • Clip On terminals
  • Power connection up to 4sqmm
  • CE Marked
  • Supplied with 2nos. M20 Blanking plugs
  • Technical data CMCT
    RATINGS/SPECIFICATIONS

    Dimmensions in mm

    130x130x75

    Ingress Protection

    IP67

    Area of use

    Non-Hazardous (Indoor and Outdoor)

    Entries

    4xM20 (2nos. entries are plugged)

    Base

    Grey Polycarbonate

    Lid

    Grey Polycarbonate

    Impact resistance

    IK 10

    Ambient Temperature range

    (-)40°C - (+)85°C

    Voltage

    250V AC (Max.)

    Max. Conductor Size

    0-4sqmm

    Current Rating

    20Amps

    Set Temperature range

    0-120°C

    Capillary Length

    1.5Mtrs

    Weight

    Approx. 600gms



    CMCT drawing
    CMCT wiring diagram

Product examples

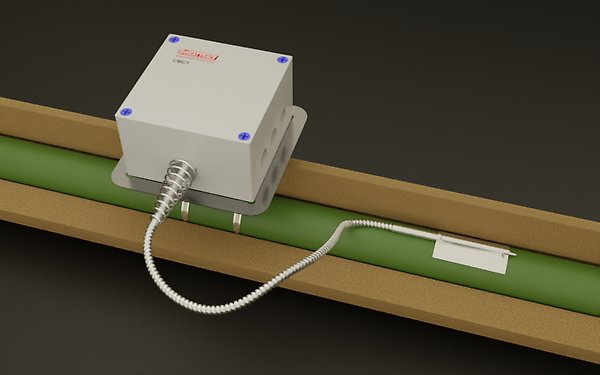

CMCT product example
