Longline (HTS1F)

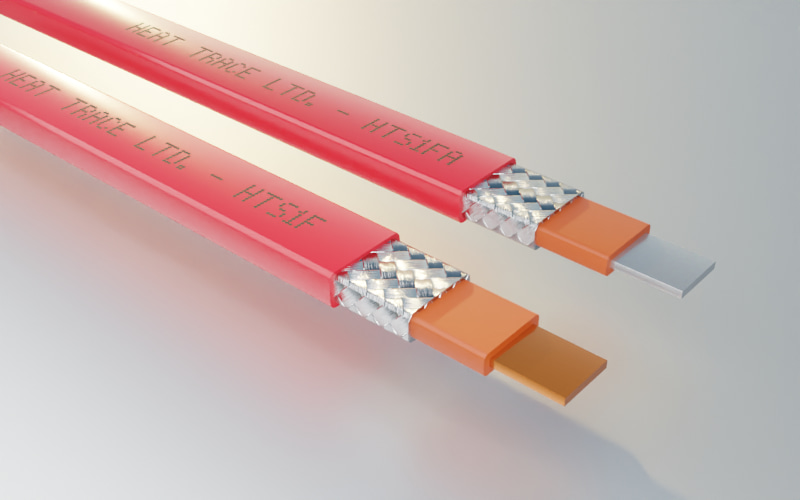

Longline (HTS1F) is a series resistance, single conductor heating cable . It is supplied in multiples of three cables for configuring into a 3 phase heating system. It is used for freeze protection or process temperature maintenance of long pipelines up to 5km, in safe or hazardous areas. A typical application is the temperature maintenance of crude or fuel oils in above ground or buried transfer lines. Longline (HTS1F) minimises the number of electrical supplies needed and so minimises supply cabling and distribution equipment costs. Circuits are often fed at the pipe ends only.

The number of heating cables and their conductor size is varied to produce the desired heat output for the circuit length required. The Longline (HTS1F) heating cables are connected directly to the 3 phase mains voltage or to a step-up transformer.

Example of Applications

  • Long pipelines
  • Buried pipelines
  • 3-Phase heating systems

Benefits

  • Circuit lengths up to 5km
  • Power outputs up to 50W/m
  • Available up to 1000VAC
  • Product Specification - maximum withstand temperature 200°C (392°F)
    Longline (HTS1F) is available in 10, 20, 30, 40 and 50 W/m outputs.

    Maximum continuous exposure Temperature

    ( Power on )

    200°C (392°F)

    Maximum permissable exposure Temperature

    ( Power off )

    200°C (392°F)

    Minimum Operating Temperature

    -80°C (-112°F)

    Minimum installation temperature

    -40°C (-40°F)

    Power Supply

    up to 600V single phase

    up to 1000V 3-Phase

    Power Output

    up to 50W/m



    Maximum Workpiece Temperatures (°C)

    Heater Nominal Output (W/m)

    HTS1F-x

    HTS1F-xS

    HTS1F-xF

    10

    200

    200

    200

    20

    191

    180

    180

    30

    163

    157

    157

    40

    133

    127

    127

    50

    97

    92

    92

    Surface temperature limits in acordance with EN50014
