PowerHeat (PHT)

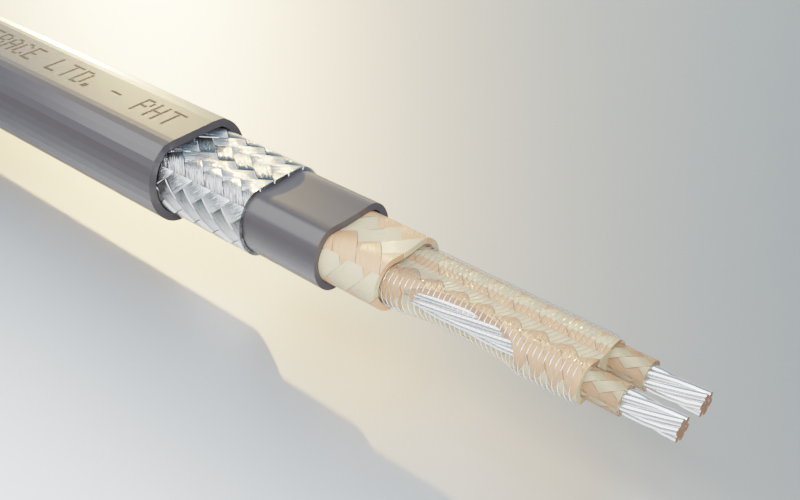

PowerHeat (PHT) is a high power, high temperature constant wattage heating cable that can be used for freeze protection and temperature maintainance of pipework and vessels. if has a maximum withstand temperature of 285°C (545°F).

PowerHeat (PHT) can be cut-to-length at site to match exact piping lengths without any complicated design considerations. PowerHeat (PHT) can be used to replace MI cables. Series resistance Mi circuits must be specifically designed for a particular pipe length and cannot be modified to suit site changes.

PowerHeat (PHT) is approved for use in non-hazardous, and hazardous areas to world wide standard.

Example of Applications

  • Process temperature maintenance of pipework and vessels
  • Suitable for use in safe, hazardous and corrosive areas
  • Can be used to replace MI cables

Benefits

  • High resistance to chemical attack
  • Available for 110V and 240VAC
  • Power outputs up to 70W/m

The installation of PowerHeat (PHT) is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  • Product Specification - maximum withstand temperature 200°C (392°F)
    PowerHeat (PHT) is available in 10, 30, 50 and 70 W/m outputs as illustrated on the graph to the right. The graph shows the nominal power output at 230V when installed on insulated metal pipes.

    Maximum Withstand Temperature

    285°C (545°F)

    Maximum Energised

    Temperature

    275°C (527°F)

    see workpiece temperature data

    Power Supply

    12 - 277 VAC

    Cable Dimensions

    PHT-N 10.2 x 7.1mm +/- 0.5mm
    PHT-NF 11.1 x 8.0mm +/- 0.5mm

    Minimum Installation Temperature

    -40°C (-40°F)

    Minimum Bending Radius

    PHT-N - 45mm
    PHT-NF - 50mm

    Weight kg/100m

    PHT-C - 9.0 kg

    PHT-CF - 11.0 kg

    Cable Gland Thread Size

    PHT-N - M20
    PHT-NF - M20

    Maximum Circuit Length (m)

    Product

    Reference

    115V

    230V


    10 PHT

    79

    152


    30 PHT

    46

    88


    50 PHT

    35

    68


    70 PHT

    30

    56


    For 10% drop variation

    Maximum Workpiece Temperatures (°C)

    Heater Nominal Output (W/m)

    PHT-N

    PHT-NF


    10 PHT

    275

    275


    30 PHT

    234

    243


    50 PHT

    186

    201


    70 PHT

    125

    147


    Surface temperature limits in acordance with EN50014

Product Instructions
