Commercial Junction Box with Electronic Thermostat (CMECT/W)

Heat trace provides commercial range of ambient sensing thermostats that are suitable for Non-Hazardous locations. These are manufactured from Polycarbonate and can be installed even under harsh ambient conditions.

These boxes may be used for direct online termination for power cable and heat tracing cable. Also, a local control through inbuilt thermostat saves lot of control cable and also improves response time. Up to two heat tracing cables can be terminated directly to this commercial thermostat with maximum load of 20Amps.*

*Higher current rating contractor (40/63A) can be provided on request.

Features

  • Compact size
  • LED Display
  • High Accuracy
  • Single power input
  • Up to 3Nos. ETH connections
  • High ambient temperature range


  • High temperature mailntenance range
  • Manual key setting
  • Clip On terminals
  • Power connection up to 4sqmm
  • CE Marked
  • Supplied with 2nos. M20 Blanking plugs
  • Technical data CMECT W

    RATINGS/SPECIFICATIONS

    Dimensions in mm

    280x190x130

    Ingress Protection

    IP67

    Area of use

    Non-Hazardous (Indoor and Outdoor)

    Entries

    4xM20 (2nos. entries are plugged)

    Base

    Grey Polycarbonate

    Lid

    Transparent Polycarbonate

    Impact resistance

    IK 10

    Ambient Temperature range

    (-)40°C - (+)85°C

    Voltage

    250V AC

    Max. Conductor Size

    0-4sqmm

    Current Rating

    20Amps*

    Set Temperature range

    0-100°C

    Sensor Length

    1.5Mtrs

    Display type

    Single row LED display

    Weight

    Approx. 800g

    *Higher current rating contractor (40/63A) can be provided on request.

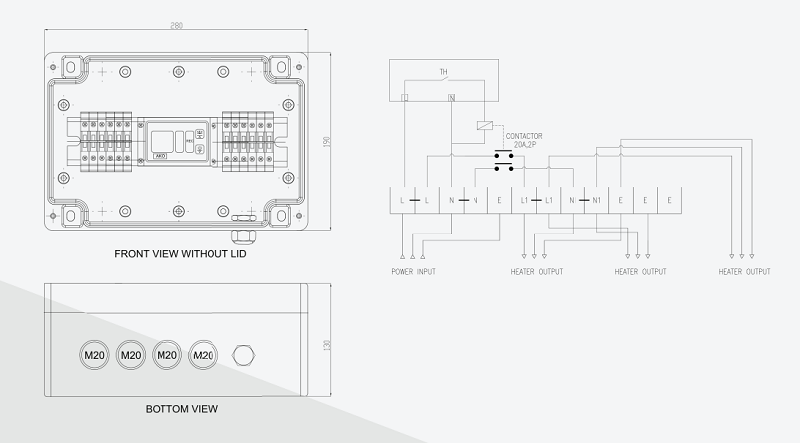

    CMECT/W drawing

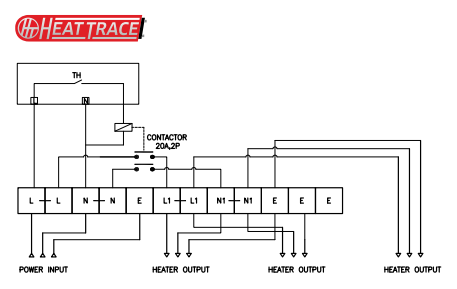

    CMECT/W wiring diagram

Product examples

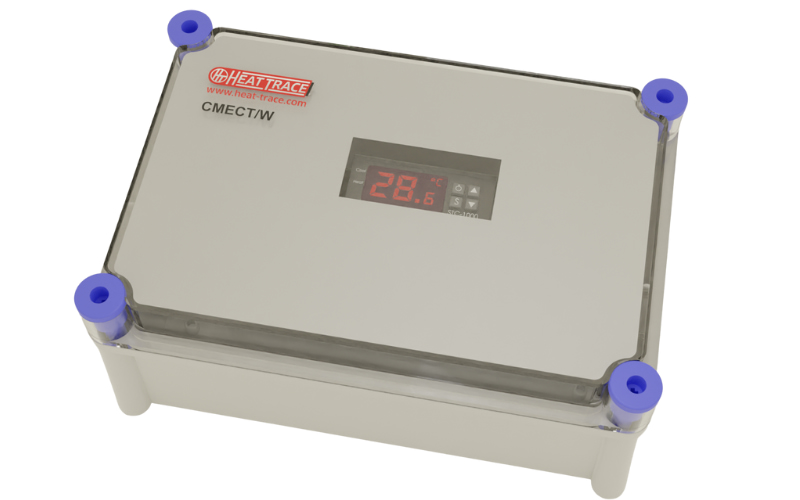

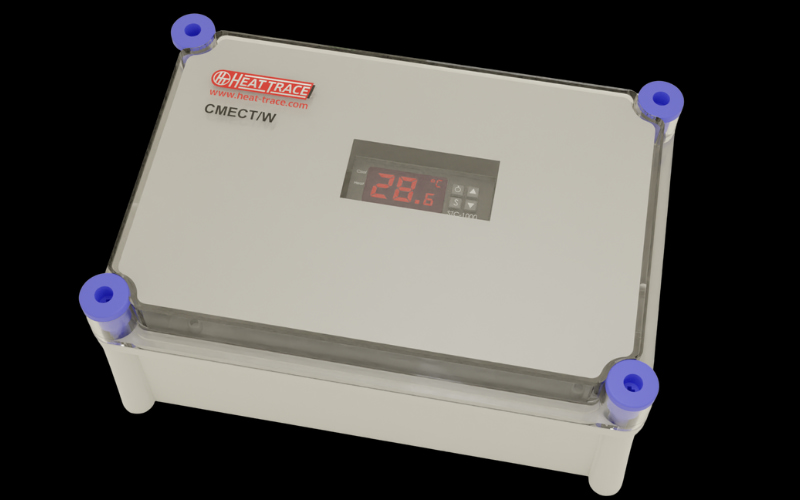

CMECT/W product example
