Commercial Junction Box with Knock Outs (CMJB)

Heat trace provides commercial junction boxes that are suitable for Non-Hazardous locations. These boxes are manufactured from Polycarbonate and can be installed even under harsh ambient conditions. These boxes may be used for direct termination of power cables and Electrical heat tracing cables. A maximum of 3nos. heat tracing cables can be connected to a single Junction Box.

Features

  • Compact size
  • Clip On terminals
  • Control cable connection up to 4sqmm
  • Knock outs on each side of junction box
  • CE Marked
  • Technical Data CMJB

    RATINGS/SPECIFICATIONS

    Dimensions in mm

    102x100x60

    Ingress Protection

    IP67

    Area of use

    Non-Hazardous (Indoor and Outdoor)

    Knock outs

    7nos. M20/M25

    Base

    Grey Polycarbonate

    Lid

    Grey Polycarbonate

    Impact resistance

    IK 10

    Ambient Temperature range

    (-)40°C - (+)85°C

    Voltage

    250V AC (Max.)

    Max. Conductor Size

    0-4sqmm

    Current Rating

    32Amps

    Weight

    Approx. 400g

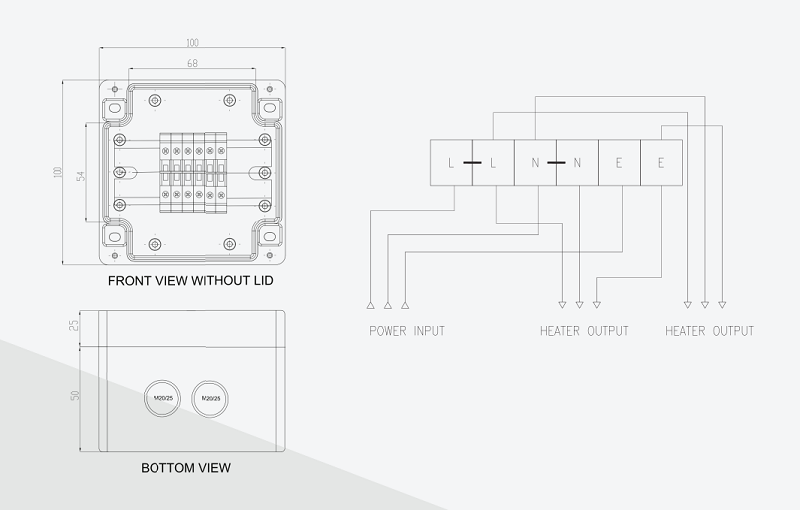

    CMJB drawing

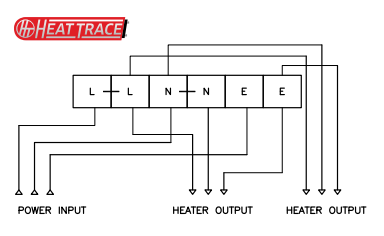

    CMJB wiring diagram
