Freezstop Extra Wide (FSEw)
Freezstop Extra Wide is an industrial grade self-regulating heating tape that can be used for freeze protection or temperature maintenance of pipework and vessels. It can be cut-to-length on site to match exact piping lengths without any complicated design considerations.
Freezstop Extra Wide is approved for use in non-hazardous, and hazardous areas to worldwide standards. Its self-regulating characteristics improve safety and reliability.
Freezstop Extra Wide will not overheat or burnout, even when overlapped upon itself. Its power output self-regulates in response to the pipe temperature.
Example of Applications
- Freeze protection of pipework & vessels
- Process temperature maintenance
- Can be cut to length
- Output self-regulates in response to pipe temperature
- No overheating or burnout
- Inherently Temperature Safe

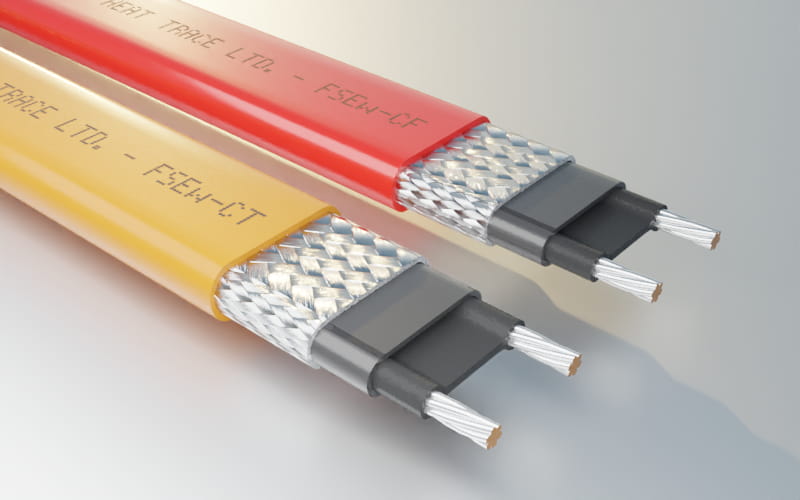

Freezstop Extra Wide is available with a corrosion resistant thermoplastic outer jacket (FSEw-CT) and when greater corrosion resistance is required with a fluoropolymer outer jacket (FSEw-CF).
The installation of Freezstop Extra Wide is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.
Product Specification - Maximum Withstand Temperature 100°C (212°F)
Freezstop Extra Wide is available in 45 and 60 W/m outputs as illustrated on the graph to the right. The graph shows the nominal power output at 230V when installed on insulated metal pipes.
Maximum Continuous Exposure
Temperature (Power ON)
Maximum Permissable Exposure
Temperature (Power OFF)
Minimum Operating Temperature
Up to 60 W/m T3 (200°C/392°F)
12 - 277 VAC
FSEw-CT 15.4 x 6.5mm
FSEw-CF 15.1 x 6.2mm
Minimum Installation Temperature
Minimum Bending Radius
FSEw-CT - 17.0 kg
FSEw-CF - 17.7 kg
Maximum Resistance of Protective Braiding
Cable Gland Thread Size
Maximum Circuit Length (m) for various circuit breaker sizes
For use with Type C circuit breakers to IEC 60898
Approvals & Certifications
Link to Certificate
