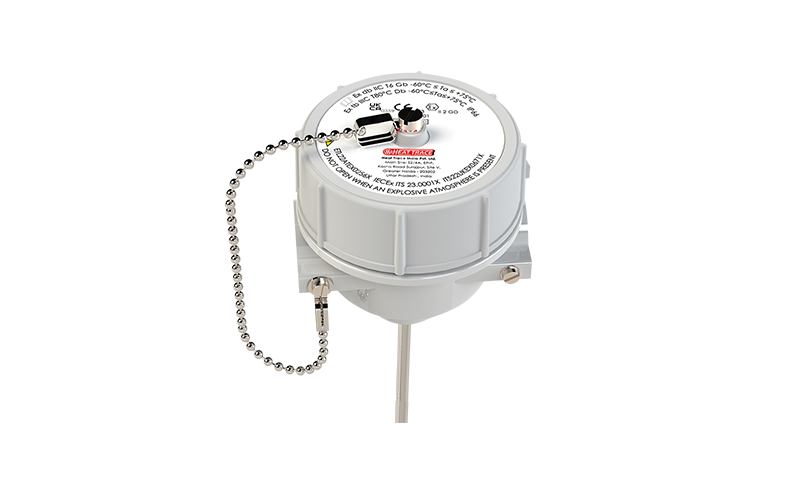

Temperature Sensor - HT/RTD/01

Flexible RTD Sensor assembly is equipped with 3Wire Pt100 RTD
Temperature Sensor and 2 Wire Thermocouple with Simplex or Duplex
Configuration. Duplex Models are provided with redundant
temperature sensing element. Having the option of Pt100 &
Thermocouple Sensor will provide more flexibility in terms of using
Electronic Temperature Controllers which can process signals from
Pt100 as well as Thermocouple. The sensor
is secured to the surface with adhesive aluminium tape.

The enclosure is made of high grade cast aluminium and painted with RAL 7035 paint.

The equipment is tested and approved for hazardous area to following
standards and ATEX Directive 2014/34/EU:
IEC 60079-0:2017 and EN IEC 60079-0:2018, IEC 60079-1:2014 and EN
60079-1:2014, IEC60079-31:2022 and EN 60079-31:2014, IEC
60529:2013 and EN 60529:1992/A2:2013
