Freezstop Extra (FSE)

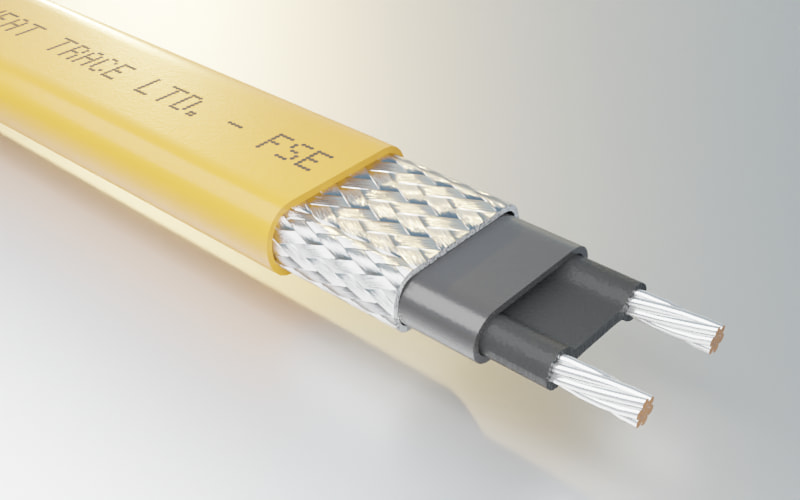

Freezstop Extra is an industrial grade self-regulating heating tape that can be used for freeze protection or temperature maintenance of pipework and vessels. It can be cut-to-length at site to match exact piping lengths without any complicated design considerations.
Freezstop Extra is approved for use in non-hazardous, and hazardous areas to world wide standards. Its self-regulating characteristics improve safety and reliability.
Freezstop Extra will not overheat or burnout, even when overlapped upon itself. Its power output self-regulates in response to the pipe temperature.
Example of Applications
- Freeze protection of pipework & vessels
- Process temperature maintenance
- Can be cut to length
- Output self-regulates in response to pipe temperature
- No overheating or burnout
Freezstop Extra is available with a corrosion resistant thermoplastic outer jacket (FSE-CT) and when greater corrosion resistance is required with a fluoropolymer outer jacket (FSE-CF).
The installation of Freezstop Extra is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.
Product Specification - Maximum Withstand Temperature 100°C (212°F)

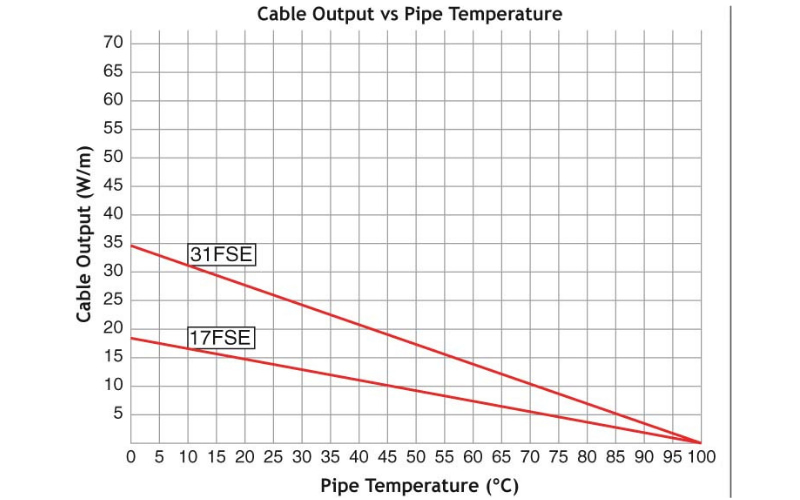

Freezstop Extra is available in 17 and 31 W/m outputs as illustrated on the graph to the right. The graph shows the nominal power output at 230V when installed on insulated metal pipes. Click on the graph to see a larger version.
Maximum Continuous Exposure
Temperature (Power ON)
Maximum Permissable Exposure
Temperature (Power OFF)
Minimum Operating Temperature
Up to 31 W/m T4 (135°C/275°F)
12 - 277 VAC
Cable Dimensions FSE-CT
12.70 x 5.95mm
Minimum Installation Temperature
Minimum Bending Radius
FSE-CT - 12.4 kg
FSE-CF - 13.2 kg
Maximum Resistance of Protective Braiding
Cable Gland Thread Size
Maximum Circuit Length (m) for various circuit breaker sizes
For use with Type C circuit breakers to IEC 60898
Approvals & Certifications
FSE 19ATEX 3379
FSE, FSEw TAE00002KA
FSE, FSEw Chinese Version
FSE CML 19.0122
EU DoC FSE-C, FSE-CT, FSE-CF
Self Reg Cable MЮ62 B 06041
FSE, FSEw CNEx19 1552U
