Commercial Ambient Sensing Thermostat (CMAT)

Heat trace provides commercial range of ambient sensing thermostats that are suitable for Non-Hazardous locations. These are manufactured from Polycarbonate and can be installed even under harsh ambient conditions.

These boxes may be used for direct online termination for power cable and heat tracing cable. Also, a local control through inbuilt thermostat saves lot of control cable and also improves response time. Up to two heat tracing cables can be terminated directly to this commercial thermostat with maximum load of 20Amps.

Features

  • Compact size
  • High Accuracy
  • Precise temperature setting
  • High ambient temperature range


  • Manual knob setting
  • Cage clamp terminals
  • Control cable connection up to 4sqmm
  • CE Marked
  • Technical data CMAT
    RATINGS/SPECIFICATIONS

    Dimmensions in mm

    130x130x75

    Ingress Protection

    IP67

    Area of use

    Non-Hazardous (Indoor and Outdoor)

    Entries

    3xM20

    Base

    Grey Polycarbonate

    Lid

    Grey Polycarbonate

    Impact resistance

    IK 10

    Ambient Temperature range

    (-)40°C - (+)85°C

    Voltage

    250V AC (Max.)

    Max. Conductor Size

    0-4sqmm

    Current Rating

    20Amps

    Set Temperature range

    0-40°C

    Sensor Gland

    Polyamide Spiral gland

    Weight

    Approx. 500g

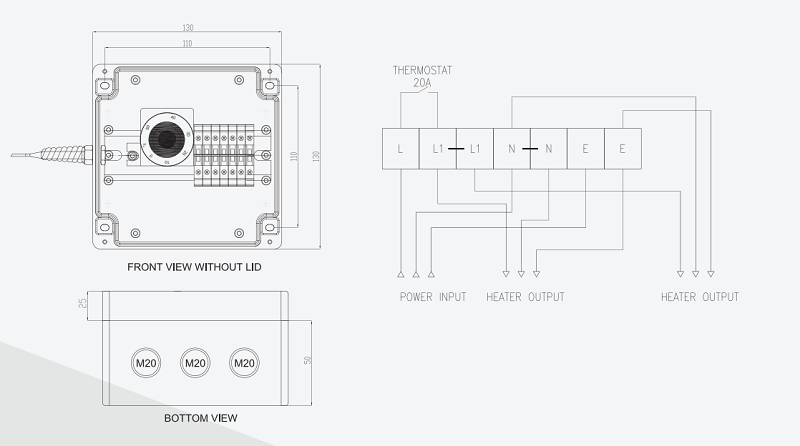

    CMAT drawing

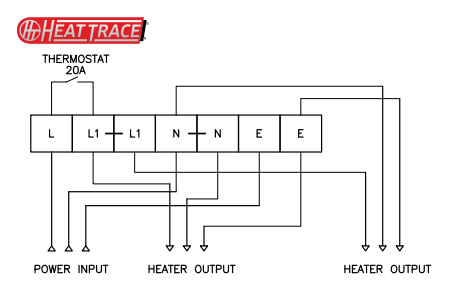

    CMAT wiring diagram

Product examples

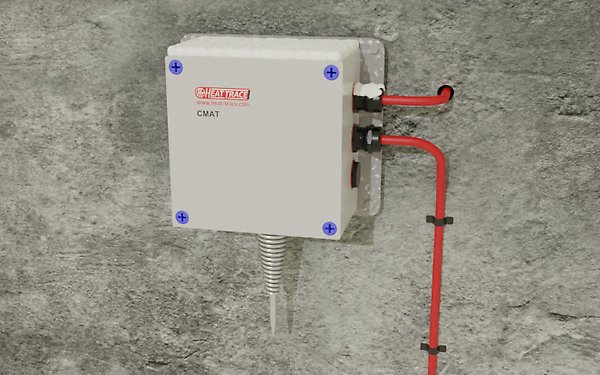

CMAT product example
