Longline (HTS3FM)

Longline (HTS3FM) is a series resistance, three phase constant power heating cable used for freeze protection or process temperature maintenance of moderately long pipelines up to 2km, in safe or hazardous areas. A typical application is the temperature maintenance of crude or fuel oils in above ground or buried transfer lines.

Longline (HTS3FM) minimises the number of electrical supplies needed and so minimises supply cabling and distribution equipment costs. Circuits are often fed at the pipe ends only. Heating conductors are sized to produce the desired heat output for the circuit length required. The Longline (HTS3FM) heating cables are connected directly to the 3 phase mains voltage or to a step-up transformer.

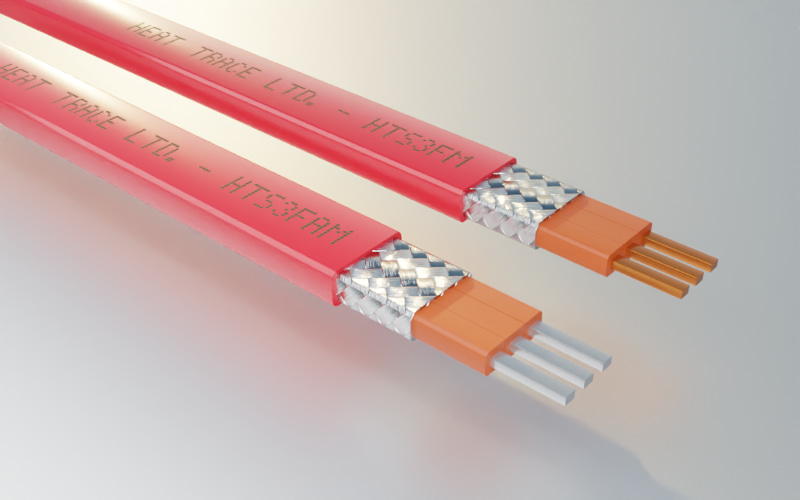

The large heated surface of Longline (HTS3FM)'s flat foil construction results in lower operating temperatures than equivalent round conductor constructions thereby improving safety and system life. The high efficiency produces high power capability up to 50W/m.

Example of Applications

  • Long pipelines
  • Buried pipelines
  • 3-Phase heating systems

Benefits

  • Circuit lengths up to 2km
  • Power outputs up to 50W/m
  • Available up to 600VAC
  • Product Specification - maximum withstand temperature 200°C (392°F)
    Longline (HTS3FM) is available in 10, 20, 30, 40 and 50 W/m outputs.

    Maximum continuous exposure Temperature

    ( Power on )

    200°C (392°F)

    Maximum permissable exposure Temperature

    ( Power off )

    200°C (392°F)

    Minimum Operating Temperature

    -80°C (-112°F)

    Minimum installation temperature

    -40°C (-40°F)

    Power Supply

    up to 600V 3-Phase

    Power Output

    up to 50W/m



    Maximum Workpiece Temperatures (°C)

    Heater Nominal Output (W/m)

    HTS3FM-x

    HTS3FM-xS

    HTS3FM-xF

    10

    200

    200

    200

    20

    191

    180

    180

    30

    163

    157

    157

    40

    133

    127

    127

    50

    97

    92

    92

    Surface temperature limits in acordance with EN50014
