EXd Thermostats - R-Series
As part of our commitment to innovation in the industry, Heat Trace Ltd is
offering a new EXd solution designed for Heat Traced systems and applications.

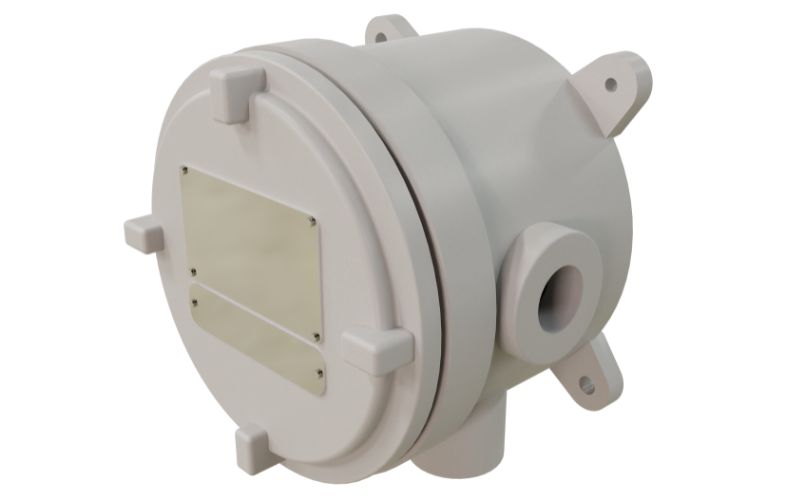

R Series Enclosures are available in various sizes:
R100 (100mm), R130 (130mm) & R160 (160mm)
which can be used for the following purposes:
- Standard Junction boxes for Power supply and Heat Tracing cables.
- Junction Boxes incorporating Thermostats for various temperature ratings.
- Junction Boxes incorporating Electronic Thermostats for various temperature ratings
- Temperature Sensors
- End Boxes with indicator light.
See below for the Enclosure types we offer in more detail.
Example of Applications
- termination of Heat Tracing cables.
- as terminal box for control.
- termination of power cables.
- Hazardous and Safe environments.
Benefits
- High Protection Level
- Versatility
- Hazardous Area Certification
- Flexible Mounting Options
Product Highlights
- Enclosures are offered in high grade, cast aluminium and painted with RAL 7035 paint.
- Enclosures are suitable for Termination of Power Cable up to 50 Sqmm.
- Enclosures are certified for use in ambient conditions (-)60°C up to (+)600°C.
- Degree of protection: Ex (db) - IP66 as per IEC 60529:2013 & EN 60529:1992+A2:2013.
- Enclosures are certified for use in hazardous area Zone 1/ Zone 2, IIA / IIB / IIC.
- Installation Accessories such as Pipe Mounting / Wall Mounting SS Pipe Straps are available on specific request.
