FailSafe Super (FSS)

FailSafe Super is an industrial grade self-regulating heating cable that can be used for freeze protection or temperature maintenance of pipework and vessels up to 225°C. It can be cut-to-length at site to match exact piping lengths without any complicated design considerations.

FailSafe Super is approved for use in non-hazardous, and hazardous areas to world wide standards. Its self-regulating characteristics improve safety and reliability.

FailSafe Super will not overheat or burnout, even when overlapped upon itself. Its power output self-regulates in response to the pipe temperature.

Accreditation & certifications - FailSafe Super (FSS)

Example of Applications

  • Freeze protection of pipework & vessels
  • Process temperature maintenance

Benefits

  • Can be cut to length
  • Output self-regulates in response to pipe temperature
  • High outputs to 75W/m at 10ºC

FailSafe Super is available with a corrosion resistant fluoropolymer outer jacket (FSS-CF).

The installation of FailSafe Super is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

  • Product Specification - Maximum Withstand Temperature 225°C (437°F)

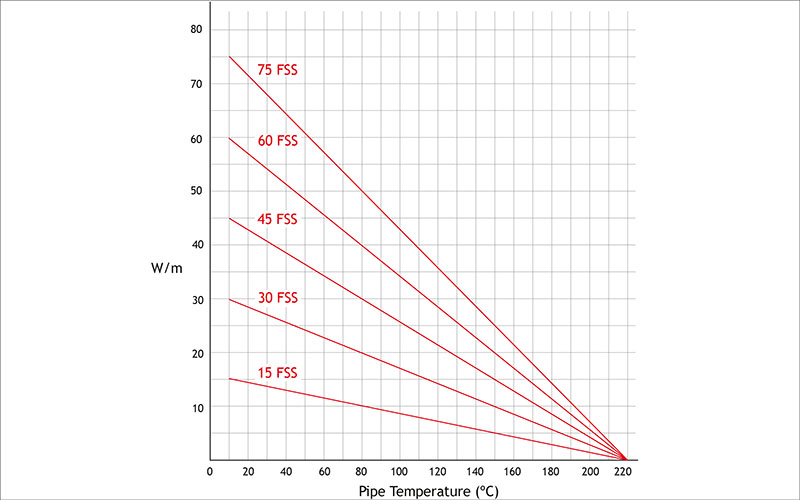

    FailSafe Super is available in 15, 30, 45, 60 and 75 W/m outputs as illustrated on the graph to the right. The graph shows the nominal power output at 230V when installed on insulated metal pipes.


    FSR Graph

    Maximum Continuous Exposure

    Temperature (Power ON)

    225°C (437°F)

    Maximum Permissable Exposure

    Temperature (Power OFF)

    225°C (437°F)

    Minimum Operating Temperature

    -65ºC (-85ºF)

    Temperature Classification

    15FSS - 60FSS T3 (200°C/392°F)

    75FSS T2 (300°C/572°F)

    Power Supply

    12 - 277 VAC

    Cable Dimensions

    FSS-CF 11.45 x 5.25mm

    +/- 0.5mm

    Minimum Installation Temperature

    -40°C (-40°F)

    Minimum Bending Radius

    FSS- CF 35mm

    Weight kg/100m

    FSS-CF - 13.4 kg

    Maximum Resistance of Protective Braiding

    18.2 Ohm/km

    Cable Gland Thread Size

    M20


    Maximum Circuit Length (m) for various circuit breaker sizes

    Product
    Reference

    Start-Up
    Termperature (°C)

    230v

    10A

    16A

    20A

    32A

    50A


    15FSS





    10

    76

    122

    154

    172

    172

    0

    70

    112

    140

    172

    172

    -20

    62

    98

    122

    172

    172

    -40

    52

    82

    102

    164

    172


    30FSS



    10

    52

    82

    102

    122

    122

    0

    46

    74

    92

    122

    122

    -20

    40

    66

    82

    122

    122

    -40

    34

    54

    68

    110

    122


    45FSS



    10

    38

    62

    76

    100

    100

    0

    34

    56

    70

    100

    100

    -20

    30

    50

    62

    98

    100

    -40

    22

    34

    44

    70

    100


    60FSS



    10

    30

    50

    62

    86

    86

    0

    28

    44

    56

    86

    86

    -20

    20

    32

    40

    62

    86

    -40

    12

    18

    24

    38

    60

    75FSS



    10

    24

    40

    50

    76

    76

    0

    18

    30

    38

    60

    76

    -20

    14

    22

    26

    42

    66

    -40

    8

    12

    16

    26

    40

    For use with Type C circuit breakers to IEC 60898
