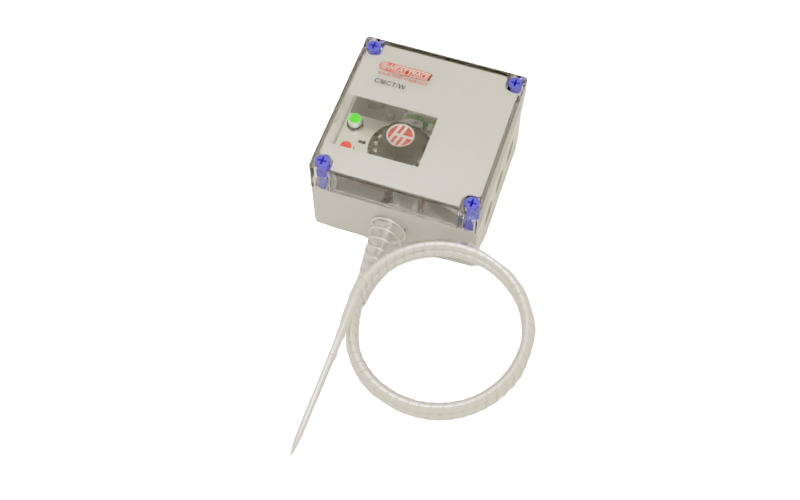

Commercial Junction Box with Thermostat with Light Indication and Clip On Terminals (CMCT/W)
Heat trace provides commercial range of ambient sensing thermostats that are suitable for Non-Hazardous locations. These are manufactured from Polycarbonate and can be installed even under harsh ambient conditions.

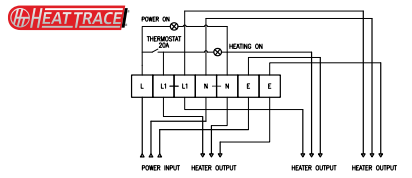

These boxes may be used for direct online termination for power cable and heat tracing cable. Also, a local control through inbuilt thermostat saves lot of control cable and also improves response time. Up to three heat tracing cables and a single power cable can be terminated directly to this commercial thermostat with maximum load of 20Amps.
Features
- Compact size
- High Accuracy
- Single power input
- Up to 3Nos. ETH connection
- High ambient temperature range
- High temperature mailtenance range
- Manual knob setting
- Clip On terminals
- Power connection up to 4sqmm
- Red lamp for Power supply Healthy
- Green lamp for Heating ON indication
- CE Marked
- Supplied wiyh 2nos. M20 Blanking plugs
-
Technical data CMCT W
RATINGS/SPECIFICATIONS
Dimensions in mm
130x130x75
Ingress Protection
IP67
Area of use
Non-Hazardous (Indoor and Outdoor)
Entries
4xM20 (2nos. entries are plugged)
Base
Grey Polycarbonate
Lid
Transparent Polycarbonate
Impact resistance
IK 10
Ambient Temperature range
(-)40°C - (+)85°C
Voltage
250V AC
Max. Conductor Size
0-4sqmm
Current Rating
20Amps
Set Temperature range
0-120°C
Capillary Length
1.5Mtrs
Indicators
Red for Power on, Green for Heating on
Weight
Approx. 600g

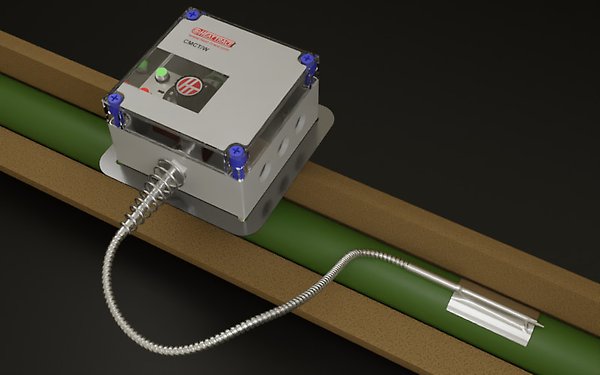

Product examples
