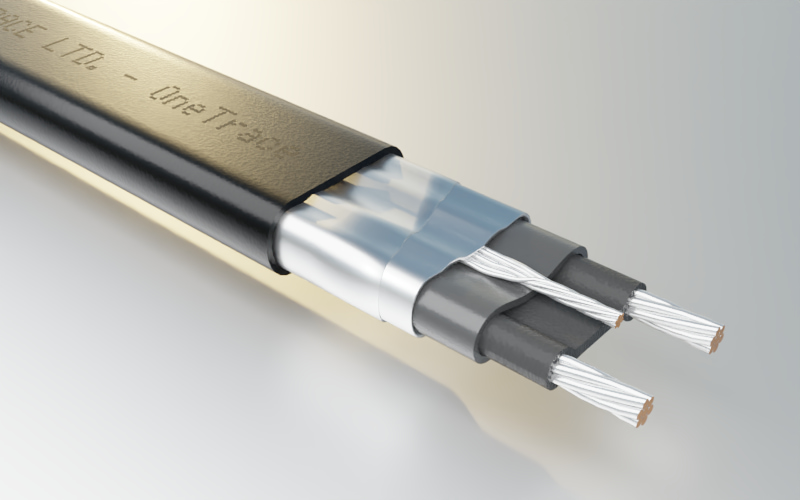

One Trace (OT)
ONETRACE is a light-self regulating heating cable that can be used for frost protection and temperature maintenance of pipework, surfaces, or tanks. It’s construction offers a low cost solution for use in industrial, commercial, agricultural and residential applications.
OneTrace is suitable for preventing frost and snow build up in winter conditions, protecting soil, ponds, gutters, and pipes from freezing in those cold winter months. Its unique construction allows for easy installation and maintenance, making it an ideal solution for frost prevention at home, at the caravan or in the marina.
Example of Applications
- Freeze protection of pipework
- Soil Warming
- Roof and Gutter
- Pond Heating
Benefits
- Can be cut to length
- Available for up to 277V AC/DC
- Automatically adjust heat output
- Inherently temperature safe
It's self-regulating characteristics improve safety and reliability. OneTrace will not over heat or burnout, even when overlapped upon itself. It's power output is self-regulated in response to the pipe surface or ambient temperature.
It can be cut-to-length on site and exact piping lengths can be matched without complicated design considerations
-
Product Specification - maximum withstand temperature 60°C (140°F)
Maximum Withstand Temperature
60°C (140°F)
Maximum Exposure Temperature
85°C (185°F)
Minimum Installation Temperature
-40°C (-40°F)
Minimum Start Up Temperature
0°C (32°F)
Power Supply
12-277V AC/DC
Cable Dimensions
OT 9.7 x 5.1mm +/- 0.5mm
IP Rating
IP67
Minimum Bending Radius
OT - 50mm
Weight kg/100m
OT 11 kg
Type ref OT
Cable Gland Thread Size
M20
