RATINGS/SPECIFICATIONS

Dimmensions in mm

130x130x75

Ingress Protection

IP67

Area of use

Non-Hazardous (Indoor and Outdoor)

Entries

4xM20 (2nos. entries are plugged)

Base

Grey Polycarbonate

Lid

Grey Polycarbonate

Impact resistance

IK 10

Ambient Temperature range

(-)40°C - (+)85°C

Voltage

250V AC (Max.)

Max. Conductor Size

0-4sqmm

Current Rating

20Amps

Set Temperature range

0-120°C

Capillary Length

1.5Mtrs

Weight

Approx. 600gms

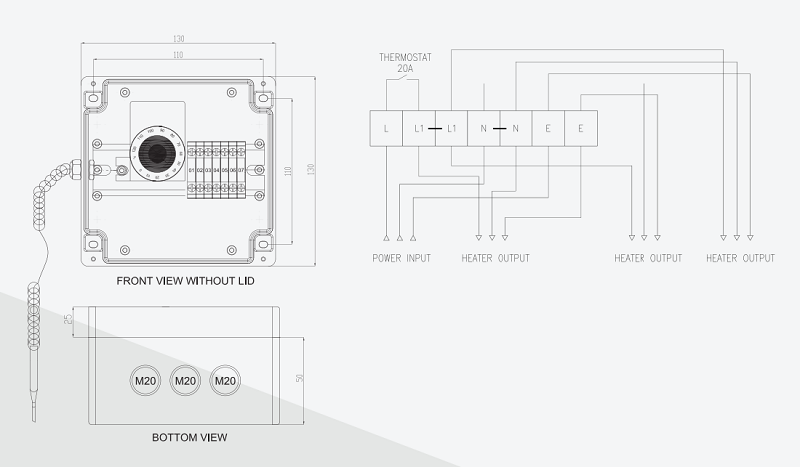

CMCT drawing

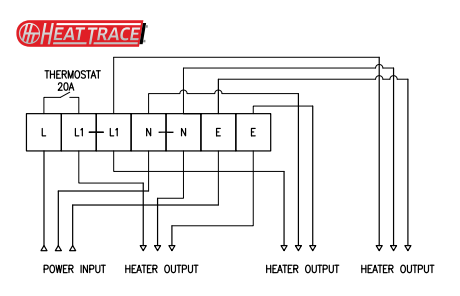

CMCT wiring diagram
