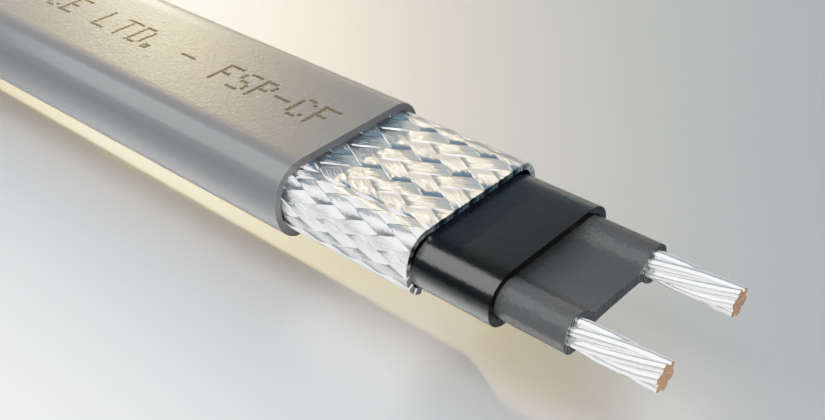

Freezstop Plus (FSP)

Available from Q2/3 2023

Electrical heating cable for process temperature maintenance (or freeze protection).

  • Automatically adjusts heat output in response to increasing or decreasing pipe temperature.
  • Can be cut-to-length.
  • Inherently temperature safe.
  • Suitable for use in safe, hazardous and corrosive areas.
  • Available up to 277VAC.
  • Full range of controls and accessories available.

Features

  • FREEZSTOP PLUS is an industrial grade, self-regulating heating cable that can be used for process temperature maintenance to 135ºC, or for freeze protection.
  • It can be cut-to-length at site and exact piping lengths can be matched without any complicated design considerations.
  • FREEZSTOP PLUS is approved for use in non-hazardous, hazardous and corrosive environments to world wide standards.
  • Its self-regulating characteristics improve safety and reliability. FREEZSTOP PLUS will not overheat or burnout, even when overlapped upon itself. Its power output is self-regulated in response to the pipe temperature.
  • The installation of FREEZSTOP PLUS is quick and simple and requires no special skills or tools. Termination, splicing and power connection components are all provided in convenient kits.

Inherently Temperature-Safe

  • The inherent ability to self-regulate with the
    thermal constraints of the heating cable material
    of construction, without the need for temperature
    control.
  • Product Specification

    Maximum Continuous Exposure Temperature

    135°C (275°F)

    Minimum Installation Temperature

    -40°C (-40°F)

    Minimum Permissable Exposure Temperature (Power OFF)

    135°C (275°F)

    Power Supply

    12-277 VAC

    Cable Dimensions

    FSP..C 11.75 x 4.75mm +/- 0.5mm

    FSP..CF 12.65 x 5.65mm +/- 0.5mm

    IP Rating

    IP67

    Minimum Bending Radius

    FSP..C - 3mm

    FSP..CF - 35 mm

    Weight kg/100m

    FSP..C - 12.2 kg

    FSP..CF - 14.2 kg

    Maximum Resistance of

    Protective Braiding

    18.2 Ohm/km

    Cable Gland Thread Size

    M20

Subject to change
