Contact Rail Heater (CRH)

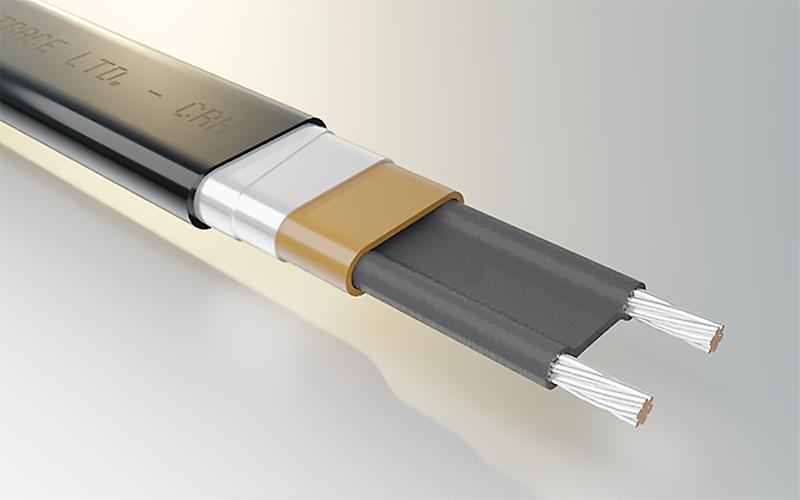

The Contact or Conductor Rail Heater self-regulating heating cable has been specifically developed for contact and 3rd / live rails operating up to 750 volt DC systems. Contact Rail Heater is designed to maintain the operational integrity of rail networks, ensuring contact rails are kept clear of snow and ice during adverse weather conditions.
Contact Rail Heater is supplied in single lengths up to 178 metres and fitted with 1.5 metre pre-terminated cold lead with remote end seals. It is suitable for direct replacement of existing contact rail heaters and will intergrate with the majority of contact or live rail heating systems. The heater is held in place on the rail using protective GRP channel or angle section and purpose made heavy duty rail clips.
Example of Applications
- Ice prevention of contact rails on rail networks.
- Ice prevention of 3rd / live rails.
Benefits
- Can be cut to length
- Simple installation causing minimum disruption to rail traffic.
- Automatically adjusts heat output in response to increasing or decreasing surface temperature.
Contact Rail Heater cables and system components are suitable for withstanding the hazards of a rail environment - such as severe and continuous vibration due to rail traffic, immersion in icy water, snow, weed killer formulations, diesel oils, lubrication oils, oxalic acid and de-icing fluids. Contact Rail Heater cables are able to operate in "free air", totally or partially, without affecting the working life of the heater.
The installation of Contact Rail Heater is quick and simple and requires no special skills or tools. The fitting of new or replacement heaters can be carried out quickly and easily with minimum track possession time required causing minimum disruption to rail traffic.
-
Product Specification - maximum withstand temperature 250°C (482°F)

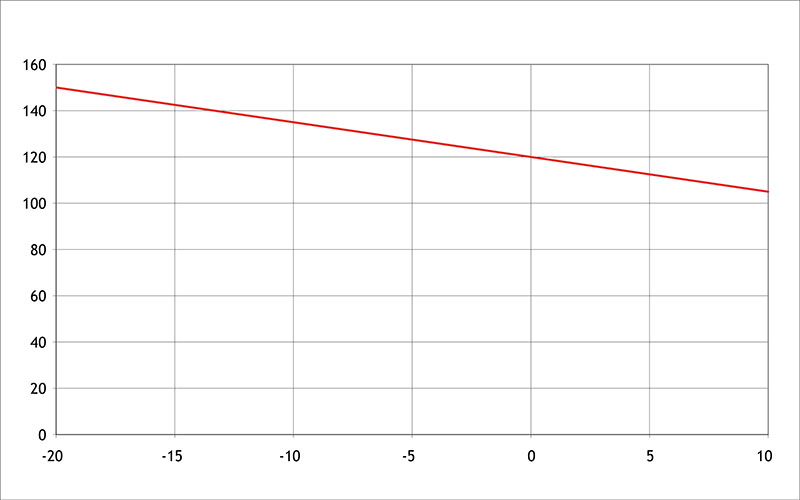

The graph on the right shows the nominal power output at 600V on a rail.
Maximum Withstand Temperature
250°C (482°F)
Maximum Energised Temperature
250°C (482°F)
Minimum Installation Temperature
-40ºC (-40ºF)
Power Supply
up to 1000 Volts (AC or DC)
Power Output (nominal)
up to 130W/m
Cable Dimensions
13.6 x 4.8mm +/- 0.5mm
Minimum Bending Radius
40mm
Weight kg/100m
15.7 kg
Maximum Resistance of
Protective Braiding
18.2 Ohm/km
Cable Gland Thread Size
M25
Maximum Circuit Length (m) for various circuit breaker sizes Product
Reference
Start-Up
Temperature (°C)
230V
16A
20A
32A
50A
90CRH6
0
84
104
166
208
-10
68
84
136
208
-20
56
72
114
178
For use with Type C circuit breakers to IEC 60898
